General Purpose Silicone Rubber Compound for Extrusion
General Purpose Silicone Rubber Compound 30 Hardness for Extrusion
DESCRIPTION
General Purpose Silicone Rubber Compound for Extrusion is a silicone-based rubber compound that is commonly used for extrusion applications. It is designed to offer high-performance properties, including excellent heat resistance, good electrical insulation, and chemical resistance. This compound is known for its high consistency and uniformity, which allows for easy extrusion and consistent performance. It is commonly used in applications such as tubing, seals, gaskets, and other extruded components. This silicone rubber compound is available in a range of hardness levels to meet the requirements of different applications. It offers excellent flexibility, durability, and resistance to aging, making it a popular choice for a wide range of industrial and commercial applications.
CHARACTERISTICS
This product could be put into basic processing after adding vulcanizator “Double 2, 5”. And it may not need second vulcanization when technical conditions properly controlled. The formed product has the following properties: very good high and low temperature resistance, corona and arc resistance, and electric insulation. It is suitable for different kinds of electric wire and cable, jacket rubber tubes and parts for electrical insulator, heat-resistant seals, irregular shaped and foam strips.
SPECIFICATION
| Typical Properties | ||
| Item | Unit | Parameters |
| Model |
DHS-5130 |
|
|
Density |
g/cm3 |
1.08+/-0.05 |
|
Hardness |
Shore A |
30+/-3 |
|
Tensile Strength |
Mpa |
≥5.5 |
|
Elongation at Break |
% |
≥500 |
|
Tensile Set |
% |
≤7 |
|
Tear Strength |
KN/m |
≥15.5 |
* first vulcanization condition for test piece: 175℃×5min
*The above test data are based on the test performed at Dowhon facilities that we believe are reliable, your results may vary due to differences in test types and conditions. Further safety and handing guide, can follow the product’s Material Safety Data Sheet or consult Dowhon’s people.
APPLICATION

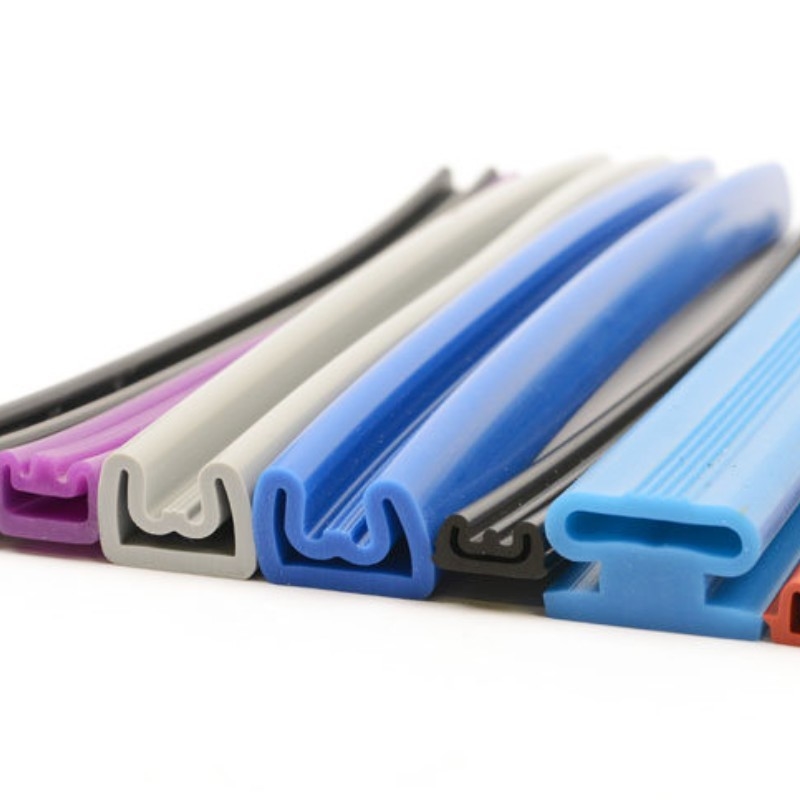

1. Automotive Industry: General Purpose Silicone Rubber is widely used in the automotive industry for extrusion applications such as sealing strips, gaskets, and hoses.
2. Construction Industry: Silicone Rubber is also used in the construction industry for extruded seals and gaskets for windows, doors, and other building components.
3. Electrical Industry: Silicone Rubber is used for extruded insulation and sealing products in the electrical industry, such as cable sheaths, wire harnesses, and connectors.

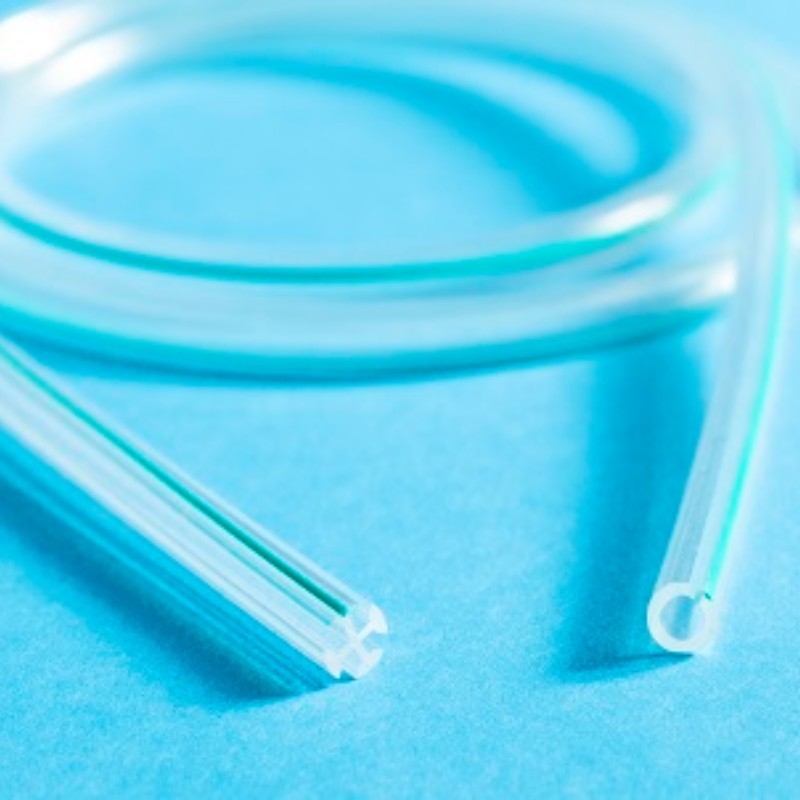

4. Medical Industry: General Purpose Silicone Rubber is also used in the medical industry for extrusion applications such as tubing, gaskets, and seals for medical devices and equipment. Its biocompatibility and resistance to heat, chemicals, and bacteria make it an ideal material for medical applications.
Package Information
Packed by plastic bags and hardened carton, 20kgs net in a carton.
