Place of Origin:
China
Brand Name:
CHENGUANG FSP
Model Number:
PA-1010A / PA-1010
Contact Us

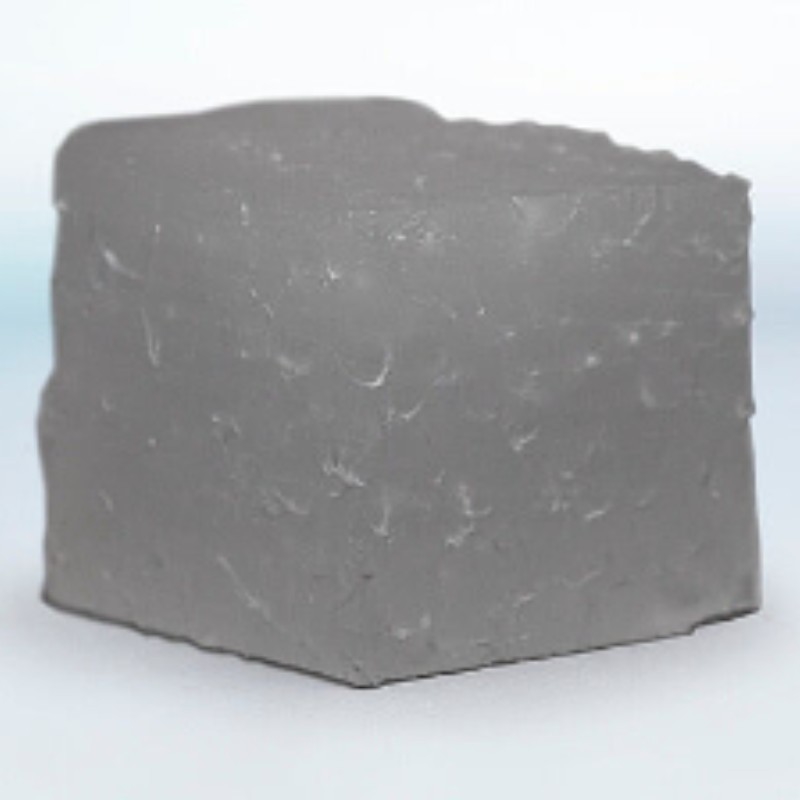

Active Chlorine Grade ACM Rubber
DESCRIPTION
Alkyl acrylate copolymer (ACM), commonly referred to as acrylic rubber, displays exceptional resistance to hot oil and oxidation. ACM exhibits a consistent working temperature of 150°C (302°F) and an intermittent threshold of 180°C (356°F). Furthermore, ACM is impervious to ozone and has minimal gas permeability. In comparison to ethylene acrylic rubber (AEM), ACM demonstrates superior resistance to swelling when exposed to mineral oils.
ADVANTAGES
ACM possesses a variety of traits that render it appropriate for use in various demanding applications. Its primary attribute is its exceptional ability to withstand hot hydraulic oil and oxidation, which makes it an excellent fit for hydraulic machinery and equipment. Additionally, ACM demonstrates inherent resilience to both ozone and weathering, making it significantly more advantageous than nitrile rubber (NBR).
PARAMETERS
|
ACM Rubber Physical Properties
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Grade | Density | Moony | Tensile Strength | Elongtation | Compression Set | Tg | Application | Product Feature |
|
g/cm3
|
ML1+4 @ 100℃
|
Mpa |
%
|
%, ASTM D395
Method B
150℃*70hr
|
℃
|
|||
|
Active Chlorine Grade
|
||||||||
|
PA-1010A
|
1.10
|
50 | 15.60 | 200 | 40 | -15 |

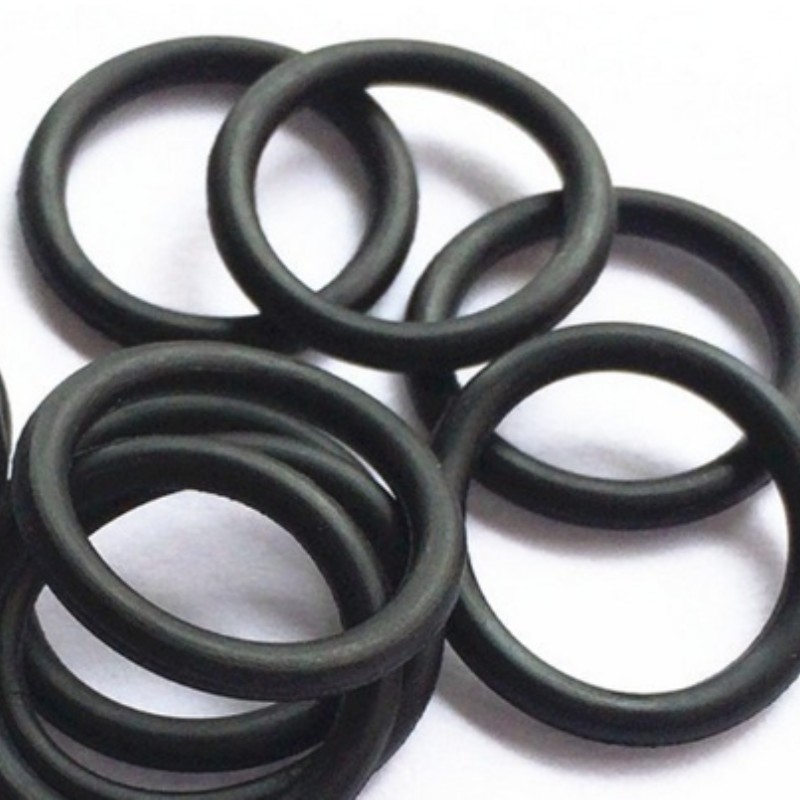

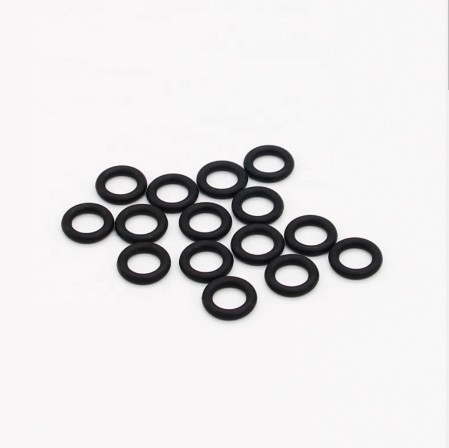

O-ring,Gasket
|
excellent oil and heat resistance,good mold flow
|
| PA-1010 | 1.10 | 45 | 14.90 | 220 | 40 | -18 | O-ring,Gasket |
excellent oil and heat resistance,good mold flow,emold release
|
APPLICATION
ACM is widely used in various high-temperature and oil-resistant environments and has become a sealing material that has been heavily developed and promoted in the automotive industry in recent years, especially for high-temperature oil seals, crankshafts, valve stems, cylinder gaskets, hydraulic oil pipelines, etc. used in automobiles.
