Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion

Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion

Carboxylic Grade ACM Material Rubber

ACM Material Rubber 12Mpa

ACM Material Rubber For Extrusion

Place of Origin:

China

Brand Name:

CHENGUANG FSP

Model Number:

PA-600

Contact Us

Request A Quote
Product Details
Name:
Carboxylic Grade ACM Rubber
Tg:
-18℃
Tensile Strength:
16.60Mpa
Density:
1.10g/cm3
Elongation:
240%
Compression Set:
25%
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Product Description

Active Chlorine Grade​ ACM Rubber



DESCRIPTION




In 2019, the Global Acrylic Rubber Market was valued at USD 750 million and is projected to exceed USD 1.2 billion in 2024, with a CAGR of approximately 8.2% from 2019 to 2024. Acrylic rubber, which is also referred to as ACM (alkyl acrylate copolymer) or Hy Temp, is a specialty rubber known for its high resistance to heat, aging, oil, ozone, ultraviolet radiation, and more. This makes it a popular choice for automotive transmissions, hoses, gaskets, adhesives, beltings, and O-rings. Additionally, acrylic rubber has dampening properties, which make it suitable for use in dampening mounts.

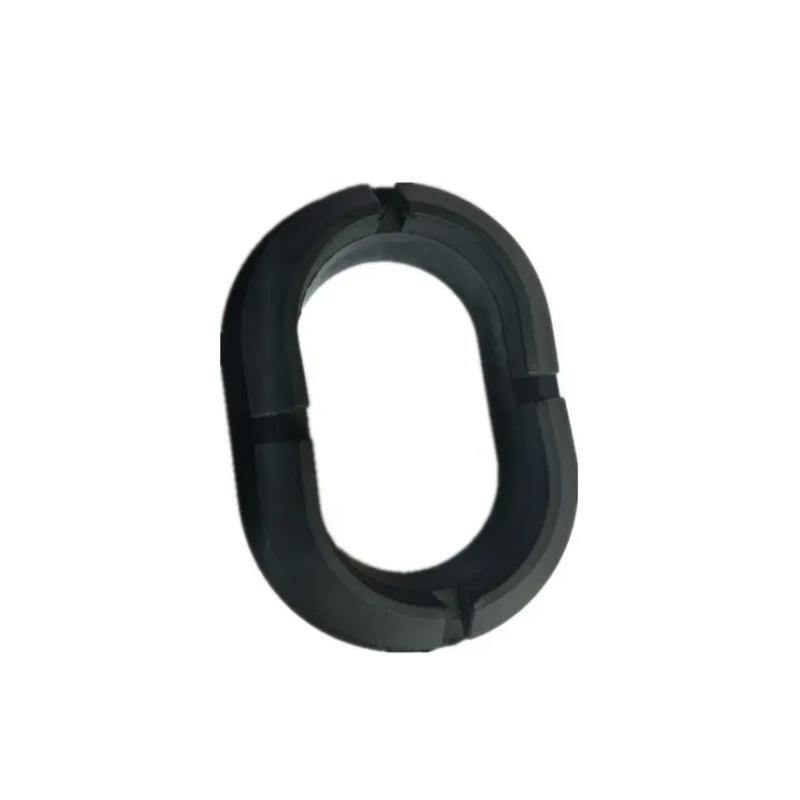

Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion 0



TEMPERATURE RANGE




Low Temp: -20°C (-5°F)         Brittle: -25°C (-13°F)

High Temp: 150°C (300°F)     Intermittent: 180°C (356°F)



PARAMETERS




ACM Rubber Physical Properties
Grade Density Moony Tensile Strength Elongtation Compression Set Tg Application Product Feature

g/cm3



ML1+4 @ 100
Mpa
%
%, ASTM D395
Method B
150*70hr
Carboxylic Grade
PA-515HE
1.10
50 16.60 220 18

-18

Gasket,Oil seal,O-ring
High strength,low compression, excellent
High temperature resistance(180℃)
PA-515E 1.10 40 13.60 190 20 -23
Hose,Gasket,Oil seal,Oring
Good for adhesion,good mold low,low compression,excellent high temperature resistance(180℃)



CLASSIFICATION




  • Epoxy Acrylate Rubber
  • Carboxyl Type Acrylate Rubber
  • Active Chlorine Acrylate Rubber
  • Dienes Acrylate Rubber

APPLICATIONS


The market growth is being propelled by the increasing production of automobiles and the need for durable products. Acrylic rubber is predominantly used for automotive seals and gaskets due to the escalating demand for oil-resistant rubber materials. Additionally, the market is positively impacted by the need for lower fuel consumption and the increasing temperatures in the engine compartment. The market will continue to expand steadily as end-users, such as customer merchandise and plastics, create a greater demand for acrylic rubber. Rapid industrialization, particularly in emerging economies such as China, will also play a crucial role in the market's growth in the coming years.

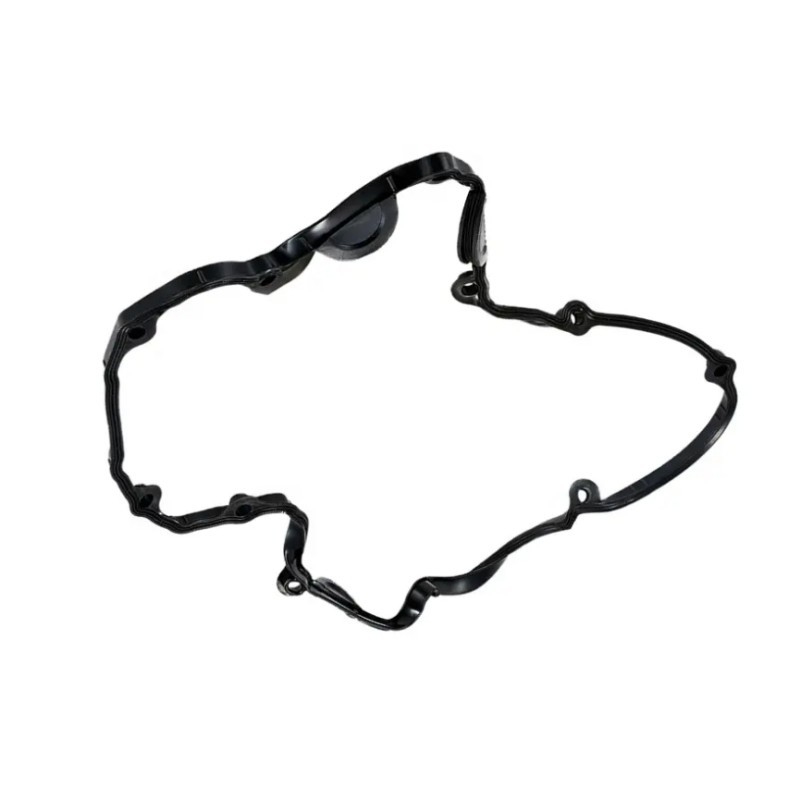

Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion 1
