Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
ISO9001
Model Number:
PA-515E
Contact Us
Acrylic Elastomer PA515E
Excellent Curing Properties 13.0Mpa Acrylic Elastomer PA515E for Oil Seal and Gasket
DESCRIPTION

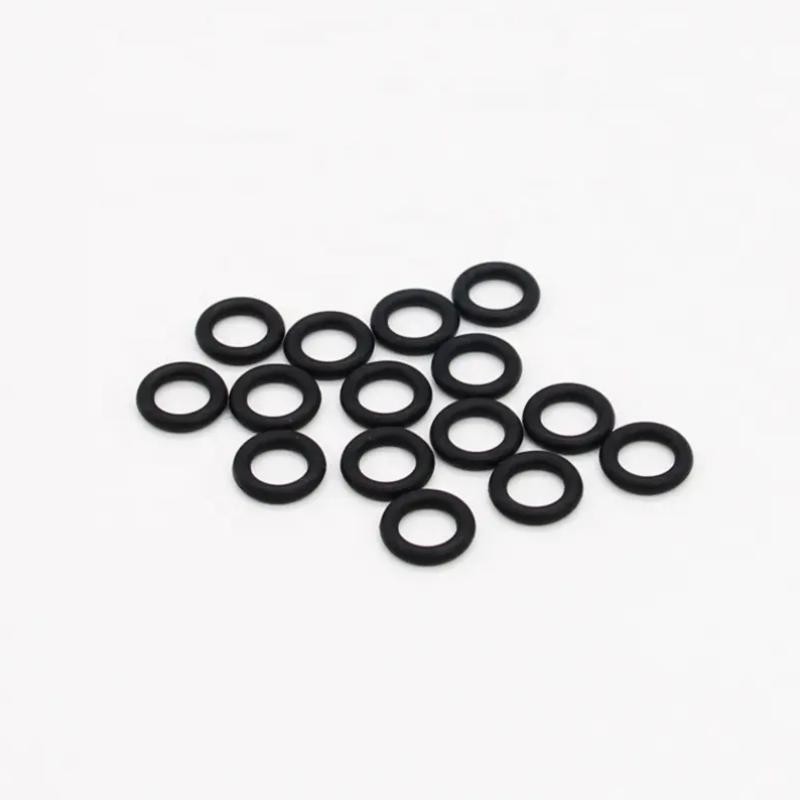

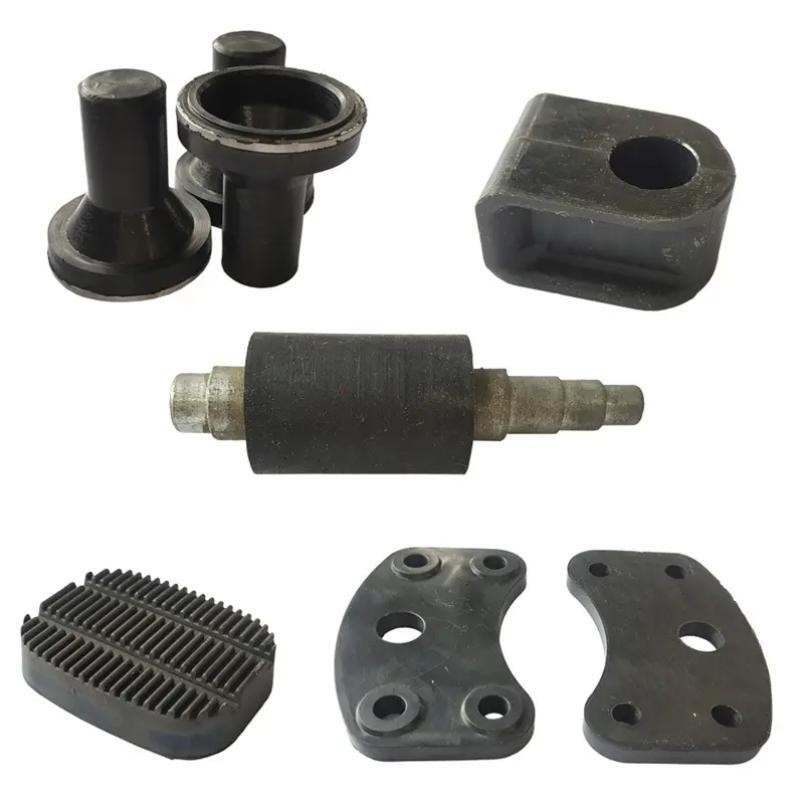

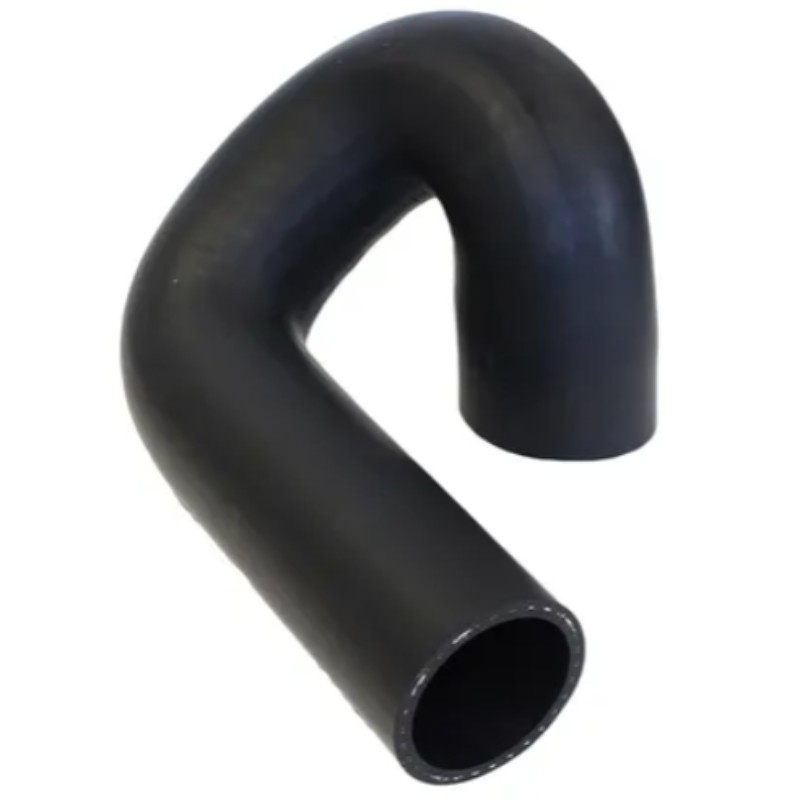

Acrylic rubber's widespread use in the automotive industry is due to its resistance to engine and transmission oil as well as automatic transmission fluids (ATF). With an operating temperature range between -20°C and +150°C, the latest generation of this rubber, HT-ACM (high-temperature-resistant polyacrylate elastomers), offers long-term thermal stability up to 175°C. ACM is utilized in the production of engine and transmission seals, turbocharger hoses, O-rings, diaphragms, hose applications, and roller coverings.
SPECIFICATION
|
Physical Properties
|
Press cured:180℃ @ 10min, post cured: 180 ℃ @ 4hour
|
|
Hardness, Shore A
|
66
|
|
Tensile strength, Mpa
|
13.0
|
|
Elongation at break, %
|
195 |
|
Compression set, % 150℃@70h
|
20
|
|
Heat Resistance Properties
|
175℃@70h in air
|
|
Tb change, %
|
-23
|
|
Eb change, %
|
+19
|
|
Hs change, Point
|
+5
|
|
Fluid Resistance
|
150℃@70h in ASTM No.1 oil
|
|
Tb change, %
|
+3
|
|
Eb change, %
|
+25
|
|
Hs change, Point
|
+4
|
|
Volume Swell, %
|
-1.0
|
| CHENGUANG FSP |
Zeon
|
Denka
|
Dupont
|
Tohpe
|
|
PA500
|
AR12
|
A403
|
AR4940
|
|
|
PA600
|
AR14
|
A804
|
VAMAC G
|
AR5140
|
|
PA700
|
AR22
|
|||
|
PA4510
|
4051
|
AR501L
|
||
|
PA4520
|
4051EP
|
|||
|
PA4530
|
4052EP
|
AR540L
|
||
|
PA4540
|
4053EP
|
|||
|
PA1020
|
AR72
|
AR825
|
||
|
PA1030
|
AR72LF
|
AR840
|
Further safety and handing guide, can follow the product’s Material Safety Data Sheet or consult us.
APPLICATION
