Name: VMQ High Strength Molded Silicone Rubber 700% Elongation for Cable Accessories
Brand: CHENGUANG FSP
SKU: GX155-U
Rating: 4.5 (195 reviews)

Home > products > MVQ Silicone >

VMQ High Strength Molded Silicone Rubber 700% Elongation for Cable Accessories

Place of Origin:

China

Brand Name:

CHENGUANG FSP

Certification:

ISO

Model Number:

GX155-U

Request A Quote

VMQ High Strength Molded Silicone Rubber 700% Elongation for Cable Accessories

Product Details

Product Name:

High-strength Molded Silicone Rubber

Density:

1.15g/cm3

Characteristics:

Translucent / Excellent Electrical Insulation Properties

Elongation At Breakage:

700%

Tension Strength:

9.0Mpa

Tear Strength:

35.0kN/m

Payment & Shipping Terms

RELATED PRODUCTS

86-28-83331379

export3@sinofluorin.com

Contact Now

Product Description

Silicone Rubber for Molding(For Food Use)

DESCRIPTION

High Temperature Vulcanizable, Peroxide Initiation Curing

CHARACTERISTICS

Transparency
Excellent electrical insulation properties
Good physical and mechanical properties
High and low temperature resistance

APPLICATION

Molded products and die-casting products, such as cable accessories, gaskets, gaskets, 0 rings, diaphragms, rubber rollers, plates, etc.

TYPICAL PROPERTIES

Properties	Test Method	Unit	Parameters
Density, 25℃	GB/T 1033-86	g/cm³	1.15
Tensile Strength	GB/T 528-1992	MPa	9.0
Elongation at Break	GB/T 528-1992	%	700
Tension Set at Break	GB/T 528-1992	%	4.0
Tear Strength	GB/T 529-1991	kN/m	35.0
Hardness, Shore A	GB/T 531-1992		55±2
Volume Resistivity	GB/T 1410-1989	Ω.cm	1.0×10¹⁵
Dielectric Strength	GB/T 1408.1-1999	kV/mm	22.0
Dielectric Constant,1MHz	GB/T 1694-1981		3.5
Dissipation Factor,1MHz	GB/T 1694-1981		5.0×10^-3

These figures are only intended as a guide and should not be used in preparing specifications.

HOW TO USE

Blend the peroxide curing agent—DBPH50 into rubber base with open mill, the mixed rubber can be used for mold after re-milling

homogeneous. Base on sample size to decide mold condition.

Base on customer request, curing agent and mix pigment can be added before ship.

PACKING, STORAGE & SHIPPING

GX151-Uhas a shelf life of 6 months at least from the date of production if stored at 25℃ or below. Storage time beyond the specified data does not mean that the product is no longer usable. In which case, the properties test for the intended use must be carried out after re-milling for quality assurance reasons. If the curing agent has been add when shipped, best using time is within 15 days.

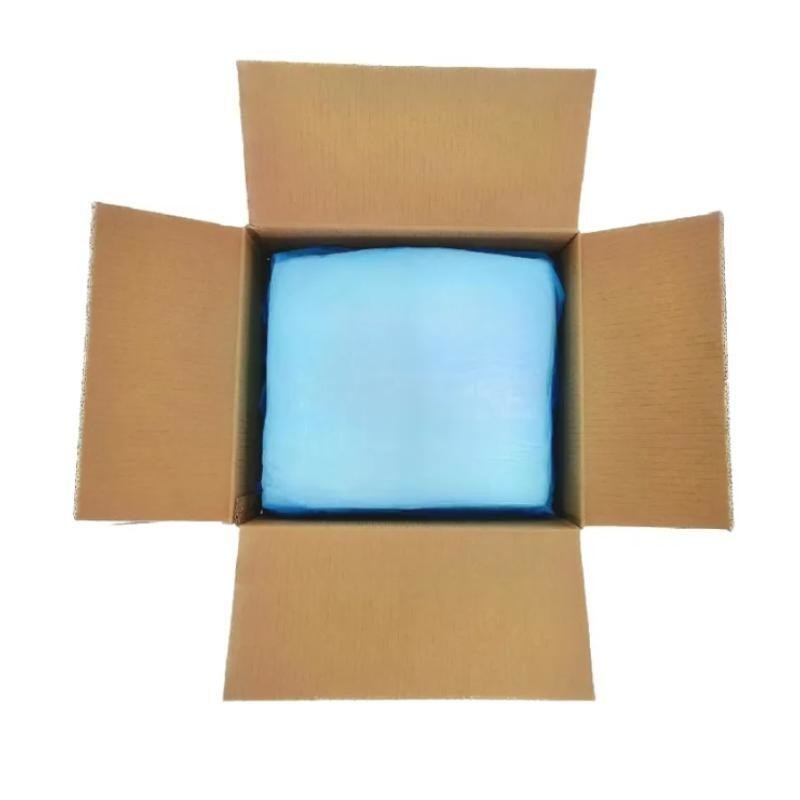

The inner package of GX155-U is polyethylene plastic bags and outer package is carton, per case of 20Kg net weight.

There is no shipping limitation for GX155-U.

LIMITED WARRANTY INFORMATION

The data presented in this leaflet are in accordance with the present state of our knowledge, but do not absolve the user from carefully checking all supplies immediately on receipt. We reserve the right to alter product constants within the scope of technical progress or new developments.

The recommendations made in this leaflet should be checked by preliminary trials because of conditions during processing over which we have no control, especially where other companies’ raw materials are also being used. The recommendations do not absolve the user from the obligation of investigating the possibility of infringement of third parties’ right and, if necessary, clarifying the position, recommendations for

use do not constitute a warranty, either express or implied, of the fitness or suitability of the products for a particular purpose.
