Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
ISO
Model Number:
7150
Contact Us
General Purpose Silicone Rubber for Molding
DESCRIPTION
FEATURES
The product is made using high-quality raw materials and special ingredients, which give it exceptional properties such as outstanding high and low temperature resistance. The rubber possesses exceptional transparency and physical as well as mechanical properties. The molded silicone rubber uses the vulcanizer "Double 2, 5". It is particularly suitable for making common silicone rubber products like keypads and accessories, especially for colored rubber products and the molding process.
TYPICAL PROPERTIES
| Item | Unit | Test Data | ||
| DHS-7130 | DHS-7150 | |||
| Density | g/cm3 | 1.08+/-0.05 | 1.15+/-0.05 | |
| Hardness | Shore A | 30+/-3 | 50+/-3 | |
| Tensile Strength | Mpa | ≥6 | ≥8.0 | |
| Elongation at Break | % | ≥520 | ≥380 | |
| Tensile Set | % | ≤7 | ≤8 | |
| Tear Strength | KN/m | ≥16 | ≥18.7 | |
* first vulcanization condition for test piece: 175℃×5min
* Further safety and handing guide, can follow the product’s Material Safety Data Sheet or consult us!

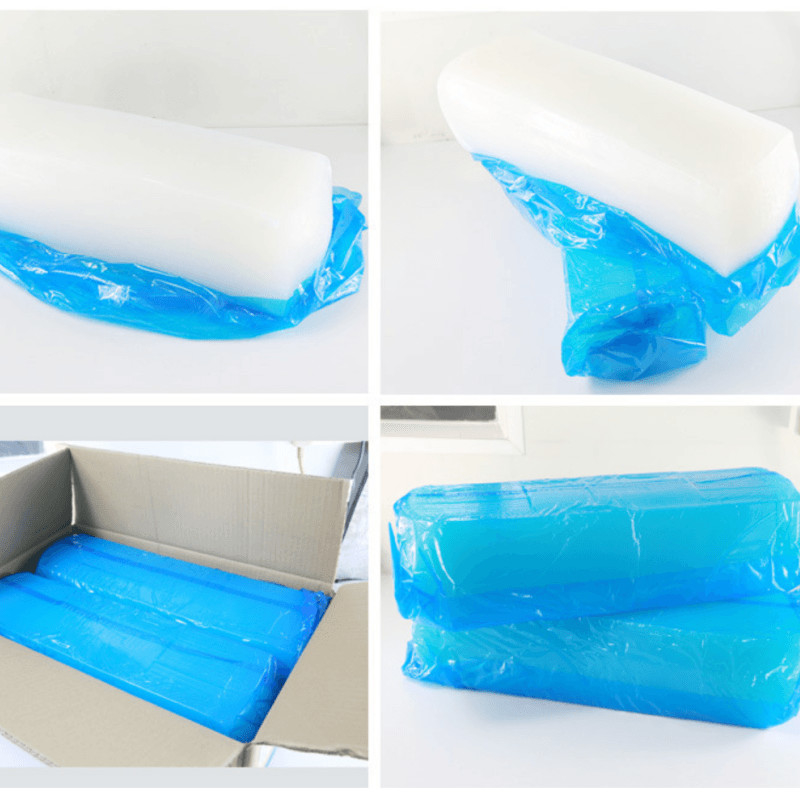

Packed by plastic bags and hardened carton, 20kgs net in a carton.

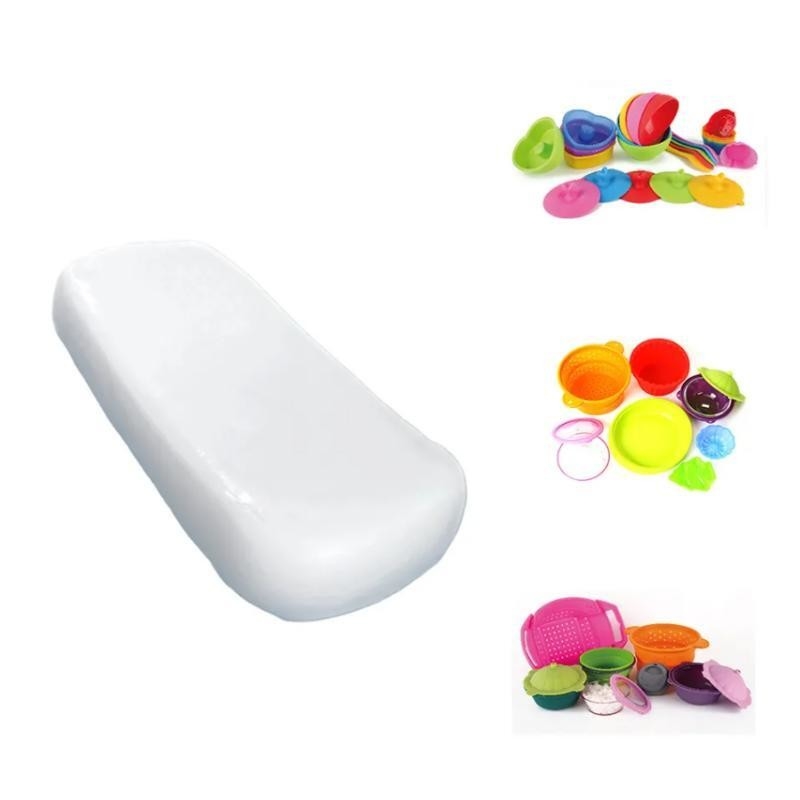

APPLICATION
1. Electronic devices such as keypads, connectors, and seals.
2. Medical equipment such as tubing, valves, and gaskets.
3. Kitchenware such as baking molds, utensils, and grips.
4. Automotive components such as gaskets, seals, and hoses.
5. Toys such as action figures, dolls, and playsets.
