Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
ISO9001 / FDA
Model Number:
R-625
Contact Us

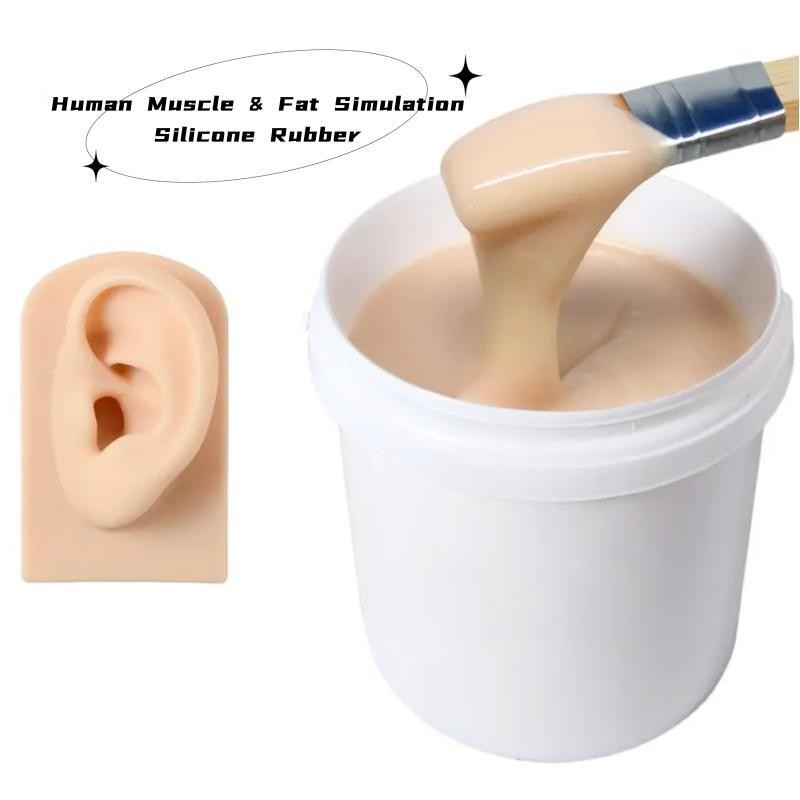

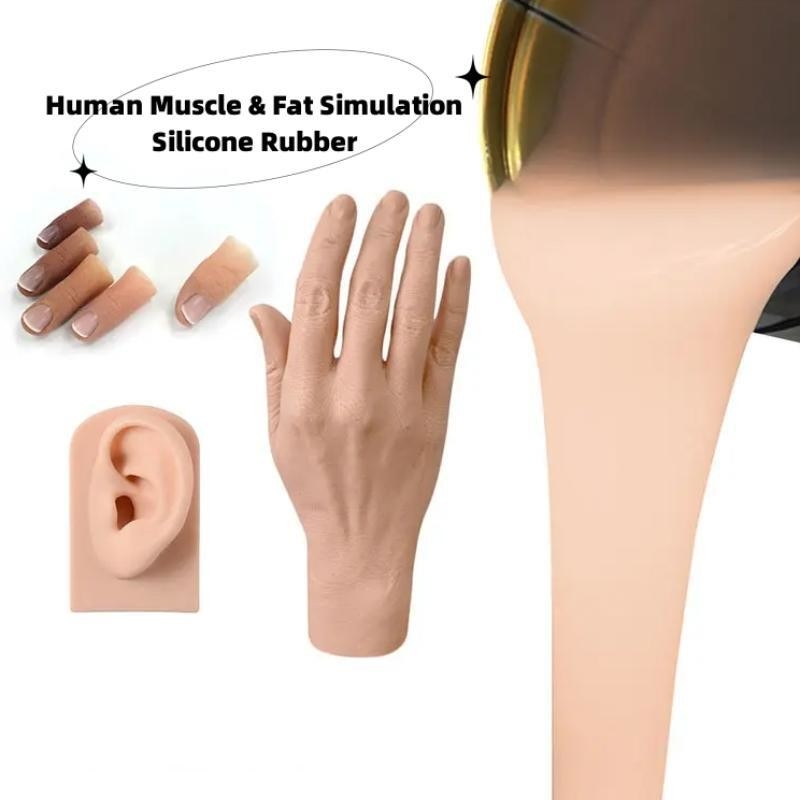

Human Muscle & Fat Simulation Silicone Rubber
Excellent Fluidity 4.0Mpa Human Muscle and Fat Simulation Silicone Rubber for Artificial Limbs Making
DESCRIPTION
Room Temperature Curable, Addition-curing Two-component Silicone Rubber.
Characteristics:
PROPERTIES
| Properties | Test Method | Unit | Value | |||
| Uncured | Componet | A | B | |||
| Appearance | Visual | Transparent |
Transparent
|
|||
| Specific gravity, 23℃ | GB/T 1033.1-2008 | g/cm3 | 1.05 |
1.05
|
||
| Viscosity,after stirred at 23℃ |
GB/T 2794-1995 | Pa.s | ≤50 | ≤50 | ||
| Mixing ratio | A:B | 1:1 | ||||
| Pot life, 25℃ | h | 1-2 | ||||
| Cured | Tensile strength | GB/T 528-2009 | MPa | ≥4.0 | ||
| Elongation at break | GB/T 528-2009 | % | ≥300 | |||
| Hardness, Shore A | GB/T 531-1999 | ≥12 | ||||
| Penetration |
GB/T 4509-1998
|
25±5 | ||||
How to use
1. Weight: According to 1:1 weight ratio to take A and B components. According to needs to mix various pigments (the usage of pigment should be determined first).
2. Mixing: It is better to use specialized equipment for fully mixing, such as small planetary mixer. Pay attention to scratch bottom and wall of container when stir by manual operation.
3. Deaeration: Do vacuum degassing in the specialized rubber mixing equipment. Or place the mixture in vacuum degassing tank with its container in order to guarantee no air bubbles in the curing rubber. The mixture surface location will rise to 3~4 times higher than original and automatically break bubbles to collapse. Please hold vacuum status more 4~6 minutes, then release.
4. Curing and molding: Pour the mixture into mold or filled site. Curing at room temperature, heat will accelerate it. Choose matched primer, cured rubber can adhere to substrate.
Packing, Storage & Shipping
R-625 A/B is supplied in 2×20Kg plastic drum, net weight.
R-625 A/B has a shelf life of 6 months at least if stored in the sealed original container between 0℃ to 30℃.
Storage time beyond the specified data does not mean that the product is no longer usable. In such case, the properties required for the intended use must be checked for quality assurance reasons.
There is no shipping limitation for R-625.
Compatibility
Certain materials, chemicals, curing agents and plasticizers can inhibit the cure of R-625. Most notable of these include:
If a substrate or material is questionable with respect to potentially causing inhibition of cure, it is recommended that a small scale compatibility test be run to ascertain suitability in a given application. The presence of liquid or uncured product at the interface between the questionable substrate and the cured gel indicates incompatibility and inhibition of cure.
Attention
The data presented in this leaflet are in accordance with the present state of our knowledge, but do not absolve the user from
carefully checking all supplies immediately on receipt. We reserve the right to alter product constants within the scope of technical progress or new developments. The recommendations made in this leaflet should be checked by preliminary trials because of conditions during processing over which we have no control, especially where other companies’ raw materials are also being used. The recommendations do not absolve the user from the obligation of investigating the possibility of infringement of third parties’ right and, if necessary, clarifying the position, recommendations for use do not constitute a warranty, either express or implied, of the fitness or suitability of the products for a particular
purpose.
