Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
ISO
Model Number:
5250
Contact Us
General Purpose Silicone Rubber for Extrusion
5250 Slightly Transparent 8Mpa General Purpose Silicone Rubber for Line and Tube
DESCRIPTION
After the addition of the vulcanizing agent "Double 2, 4," this product can undergo basic processing, and under appropriate technical conditions, does not require a second vulcanization step. The final product exhibits excellent properties such as high and low-temperature resistance, corona and arc resistance, and electrical insulation. It can serve as suitable material for various applications, including electrical wire and cable, jacket rubber tubes, electrical insulator parts, heat-resistant seals, irregularly shaped and foam strips.
PARAMETERS
| Model |
DH-5250
|
|
|
For Line
|
For Tube
|
|
| Appearance | Milky-white,light-yellow,light-gray | |
| Density (g/cm3) | 1.18±0.05 | |
| Hardness (Shore A Points) |
50±2
|
52±2
|
| Tensile Strength (MPa≥) |
8.0
|
8.0
|
| Tensile Strength at Break (% ≥) |
440
|
380
|
| Tension Set at Break (% ≤) | 14 | 12 |
| Tear Strength (kN/m ≥) |
20
|
|
| Volume Resistivity (Ω·cm, ≥) |
3.0×1014
|
|
| Dielectric Strength (kV/mm ≥) | 20 | |
Physical and Mechanical Properties are based on first vulcanization data, Electrical Properties are drawn from
second vulcanization data.
First vulcanization Condition for test piece: 175℃×5min, Second vulcanization condition for test piece:
200℃×2h.
Vulcanizator: 80% DMDBH,quantity added 0.65%.
CHARACTERISTICS
1. High Temperature Resistance: General silicone rubber for molding can withstand a wide range of temperatures without losing its physical properties, making it suitable for use in high-temperature environments.
2. Chemical Resistance: Silicone rubber is highly resistant to chemicals, including acids, alkalis, and solvents. This makes it ideal for applications where exposure to harsh chemicals is common.
3. Good Electrical Insulation: Silicone rubber has excellent electrical insulation properties, making it a popular choice for electrical and electronic equipment.
4. Tear and Abrasion Resistance: General silicone rubber for molding is highly resistant to tearing and abrasion, making it suitable for use in applications where the rubber will be subjected to mechanical stress and friction.
APPLICATION
Aerospace: The toughness and heat resistance of silicone make it an ideal material for various aerospace applications, such as engine components, protective coatings, electrical equipment, and sealants.
Automotive: Silicone's exceptional properties make it an excellent material for use in the automotive industry. Its use includes gaskets, sealants, hoses, and tubing.
Construction: The robustness of silicone and its ability to withstand wind, UV rays, rain, and ozone make it an excellent choice for construction purposes. It is widely used in adhesives, coatings, and sealants.
Medical: Several silicone formulations are FDA-approved, making it a safe material for various medical equipment, including feeding tubes, pacemakers, respiratory masks, and stents.
PROCESSING FORM

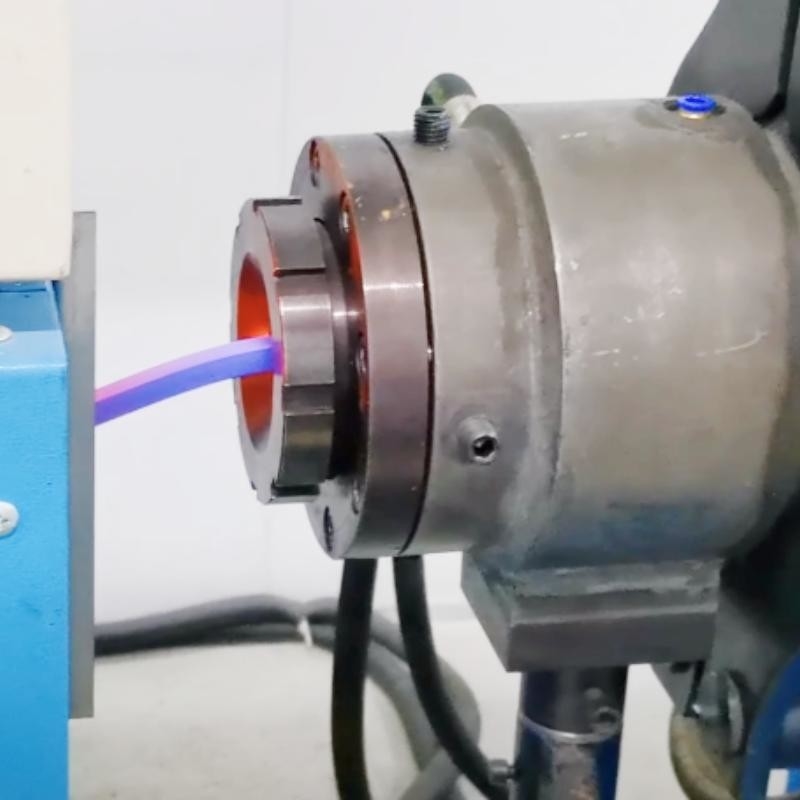

The CHENGUANG FSP solid silicone rubber grades can undergo traditional processing methods, such as extrusion, injection, transfer and compression molding, as well as calendering.
QUALITY CONTROL
QC Profile
Thanks to our team of experienced and skilled professionals, we have built a broad and steady customer base, earning a reputable status for our consistent product quality, reliable credit, and exceptional services.
OUR FACTORY
Proper packing and warehouse FIFO management.
Stable supplying of all fluoropolymer products.
Technicians in laboratory make sure the products quality is in control.
Professional logistics make sure the products are in perfect packing during transportation.
