Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
FDA / LFGB / SGS
Model Number:
DHS-170
Contact Us

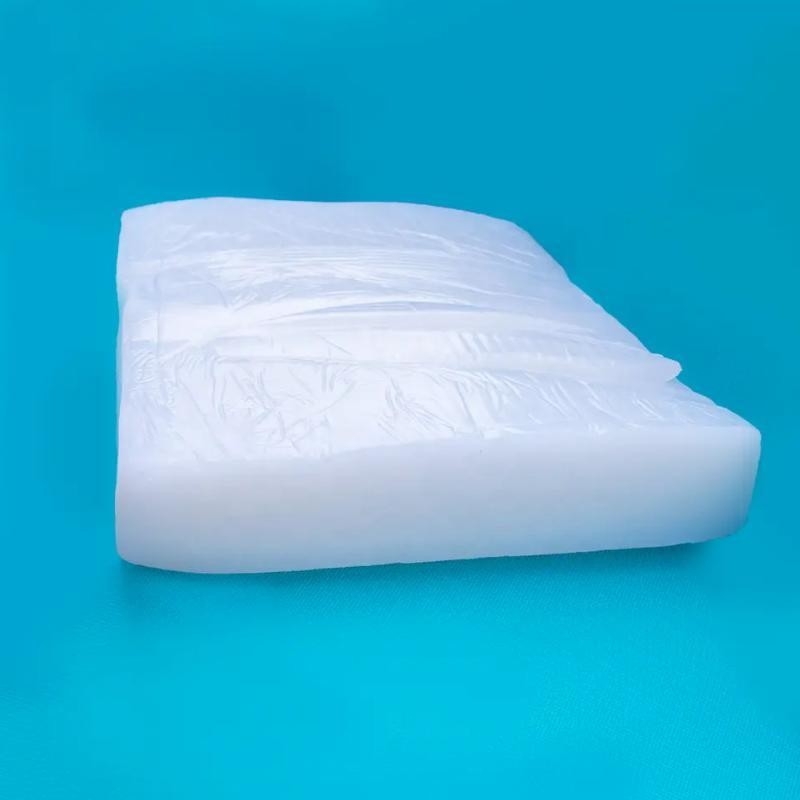

High Transparency Silicone Rubber
Food Grade Non Toxic Synthetic Fumed Silicone 300 Elongation Raw Elastomer
DESCRIPTION
High Transparency Silicone Rubber is an advanced and adaptable material with exceptional optical properties that make it highly versatile for use in various applications. These include medical devices, optical components, and electronics. What makes this material stand out are its unique features of high transparency, durability, and biocompatibility, which make it an excellent choice for manufacturers and designers seeking reliable and high-performance materials. As its popularity and widespread use continue to increase, the demand for High Transparency Silicone Rubber is expected to rise significantly in the future, driven by its diverse applications across different industries.
SPECIFICATION
| Model |
DHS-170
|
DHS-160 | |
| Appearance |
Translucent,no obvious extraneous matter |
||
| Density (g/cm3) |
1.22±0.04 |
1.18±0.04 |
|
| Hardness (Shore A Points) |
70±2
|
60±2 |
|
| Tensile Strength (MPa≥) |
8.0
|
8.5 |
|
| Elongation at Breakage (%≥) |
300
|
400 |
|
| Tension Set (% ≤) |
8 |
8 | |
| Tear Strength (kN/m ≥) |
25
|
25 | |
|
Volume Resistivity (Ω.cm) |
1.0X1016 |
||
|
Dielectric Strength (kv/mm≧) |
22 |
||
|
Linear Shrinkage Rate after the first vulcanization (%) |
2.6-3.2 |
2.8-3.3 |
|
Physical and Mechanical Properties are based on the first vulcanization data,Electrical Properties are drawn from the second vulcanization data.
The first vulcanization condition for test piece: 175℃×5min；The second vulcanization condition for test piece: 200℃×2h
Vulcanizator: Liquid DMDBH, quantity added 0.65%
HIGH BIOCOMPATIBILITY
High Transparency Silicone Rubber has biocompatibility due to its chemical structure and properties. The material is inert and does not react with living tissues or fluids, which makes it less likely to cause an adverse immune response or toxicity. Additionally, the material is non-porous, meaning it does not allow the growth of microorganisms that can cause infections or other health issues. These properties make High Transparency Silicone Rubber a popular material for use in medical implants, prosthetics, and other medical devices that come into direct contact with the human body.
APPLICATIONS
Silicon metal is also a crucial component in various products and applications:
FAQ
1. Can High Transparency Silicone Rubber withstand extreme temperatures?
Yes, High Transparency Silicone Rubber has excellent thermal stability and can withstand a wide range of temperatures, from as low as -60°C to as high as 200°C.
2. Does High Transparency Silicone Rubber have good resistance to chemicals and solvents?
Yes, High Transparency Silicone Rubber has excellent resistance to a wide range of chemicals and solvents, including acids, bases, and oils.
3. How does High Transparency Silicone Rubber compare to other transparent materials like glass and plastic?
High Transparency Silicone Rubber has several advantages over glass and plastic, including higher flexibility, impact resistance, and thermal stability. It is also lighter in weight and more resistant to shattering compared to glass. Additionally, it has better chemical resistance than many plastic materials.
4. What are some potential future applications of High Transparency Silicone Rubber?
Some potential future applications of High Transparency Silicone Rubber include its use in renewable energy technology, such as solar panels and wind turbines, as well as in wearable technology like smartwatches and fitness trackers. It also has potential applications in the automotive and aerospace industries for use in windows and other components.
