Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
FDA / LFGB / SGS
Model Number:
DHS-9370
Contact Us
High Transparency Silicone Rubber
Colorless 8.5Mpa Transparent Silicone Rubber for Manufacturing Molding
FEATURES
High Transparency Silicone Rubber is characterized by its exceptional transparency, making it an ideal material for applications where visual clarity is important. Additionally, it also features a high elongation at break, allowing it to stretch up to 300% of its original length before breaking. Other features of this material may include good thermal stability, excellent electrical insulation properties, resistance to weathering and aging, and more, depending on the specific formulation and intended application.
SPECIFICATION
| Model |
DHS-9370
|
DHS-9360 | |
| Appearance |
Translucent,no obvious extraneous matter |
||
| Density (g/cm3) |
1.22±0.04 |
1.18±0.04 |
|
| Hardness (Shore A Points) |
70±2
|
60±2 |
|
| Tensile Strength (MPa≥) |
8.5
|
9.0 |
|
| Elongation at Breakage (%≥) |
300
|
400 |
|
| Tension Set (% ≤) |
10 |
8 | |
| Tear Strength (kN/m ≥) | 40 | 40 | |
|
Volume Resistivity (Ω.cm) |
1.0X1016 |
||
|
Dielectric Strength (kv/mm≧) |
22 |
||
| Linear Shrinkage Rate after the first vulcanization | 2.6-3.2% | ||
Physical and Mechanical Properties are based on the first vulcanization data,Electrical Properties are drawn from the second vulcanization data.
The first vulcanization condition for test piece: 175℃×5min；The second vulcanization condition for test piece: 200℃×2h
Vulcanizator: Liquid DMDBH, quantity added 0.65%
APPLICATION

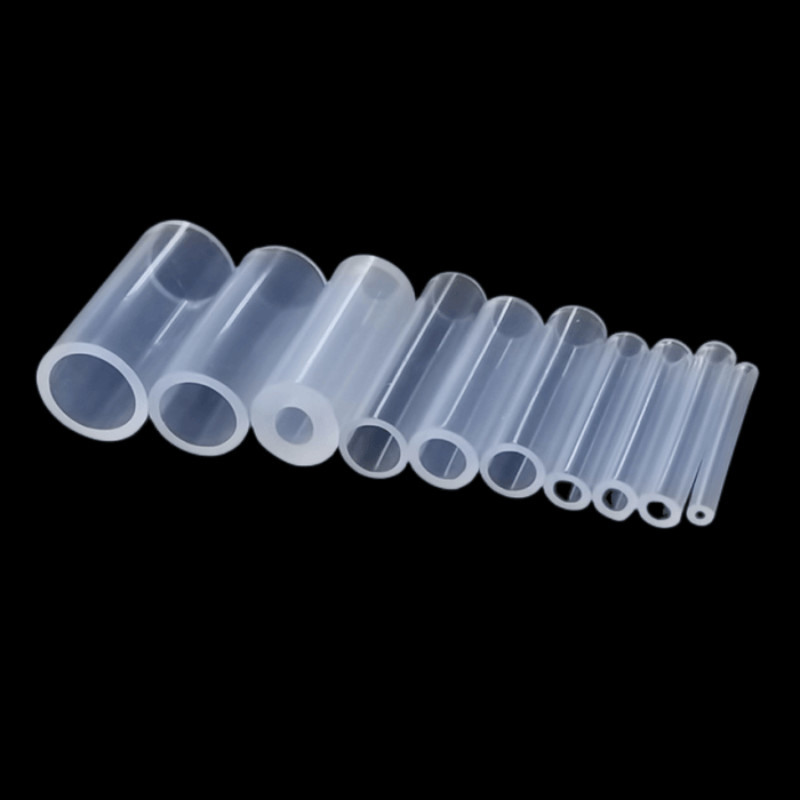

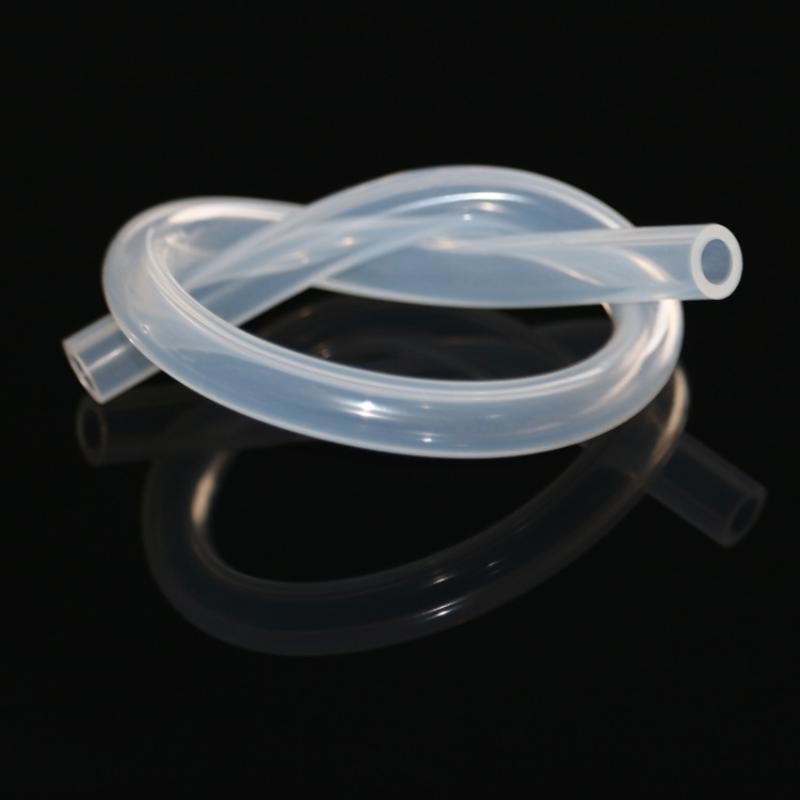

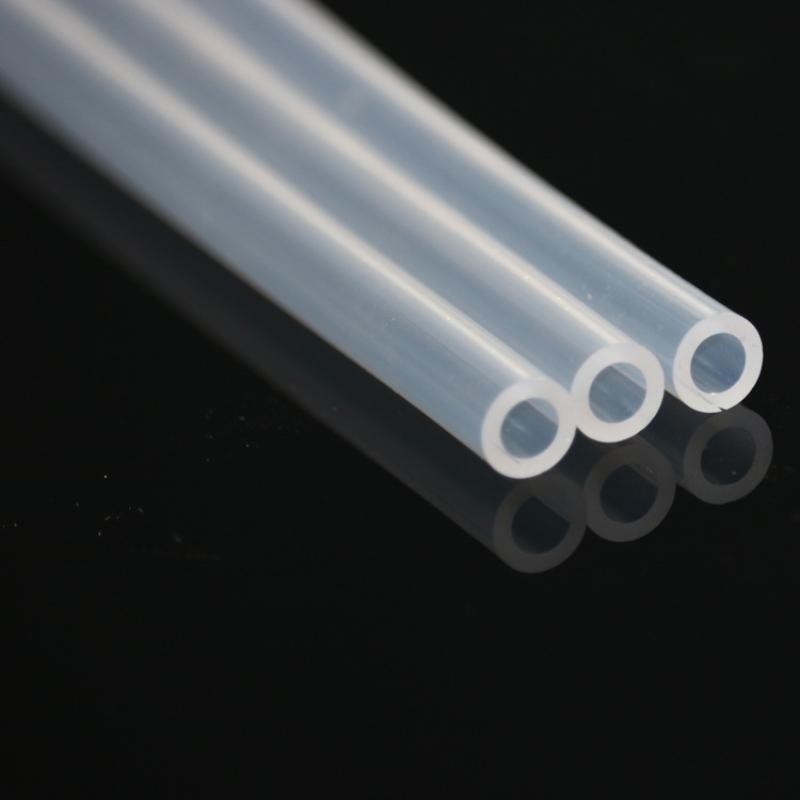

1. Medical devices: Transparent silicone rubber with high elongation and tensile strength is used in medical devices such as tubing, catheters, and seals. The material's flexibility and durability make it ideal for use in medical equipment that requires frequent bending and manipulation.
2. Consumer electronics: The transparent silicone rubber with high elongation and tensile strength are also used in consumer electronics, specifically as protective cases for smartphones, tablets, and other mobile devices. The material provides a non-slip grip, shock absorption, and protection from scratches and dents.
3. Automotive industry: Transparent silicone rubber with high elongation and tensile strength is used in the automotive industry for various applications such as gaskets, seals, and hoses. The material's high durability and resistance to high temperatures, chemicals, and weather make it suitable for use in harsh automotive environments.
4. Industrial machinery: The transparent silicone rubber with high elongation and tensile strength is also used in industrial machinery for gaskets and seals. The material's ability to withstand extreme temperatures, chemicals, and physical stress make it an excellent choice for use in heavy-duty machinery and equipment.
