Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
FDA / LFGB / SGS
Model Number:
DH-9470
Contact Us

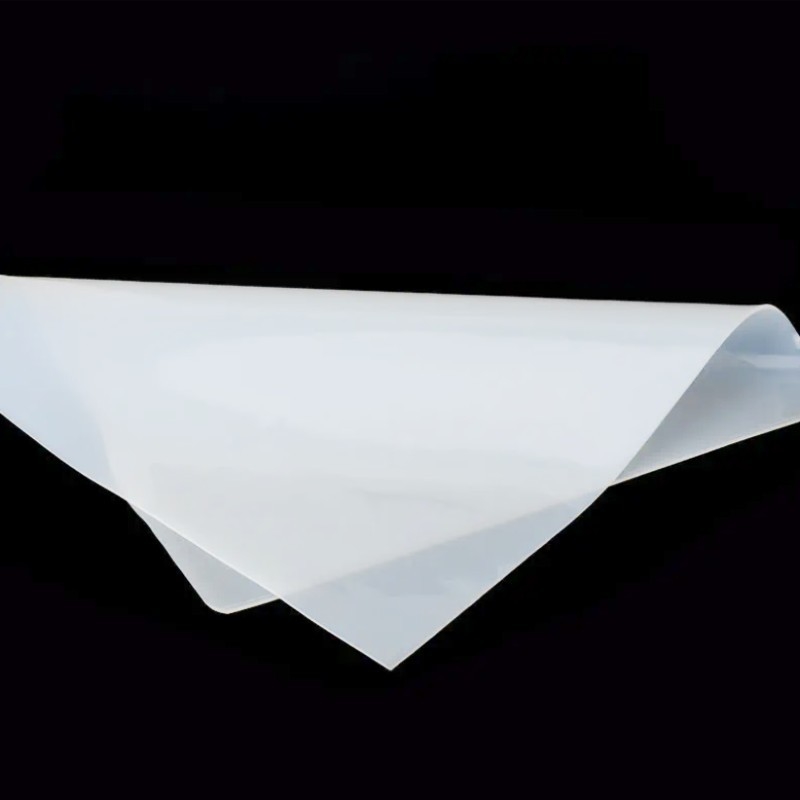

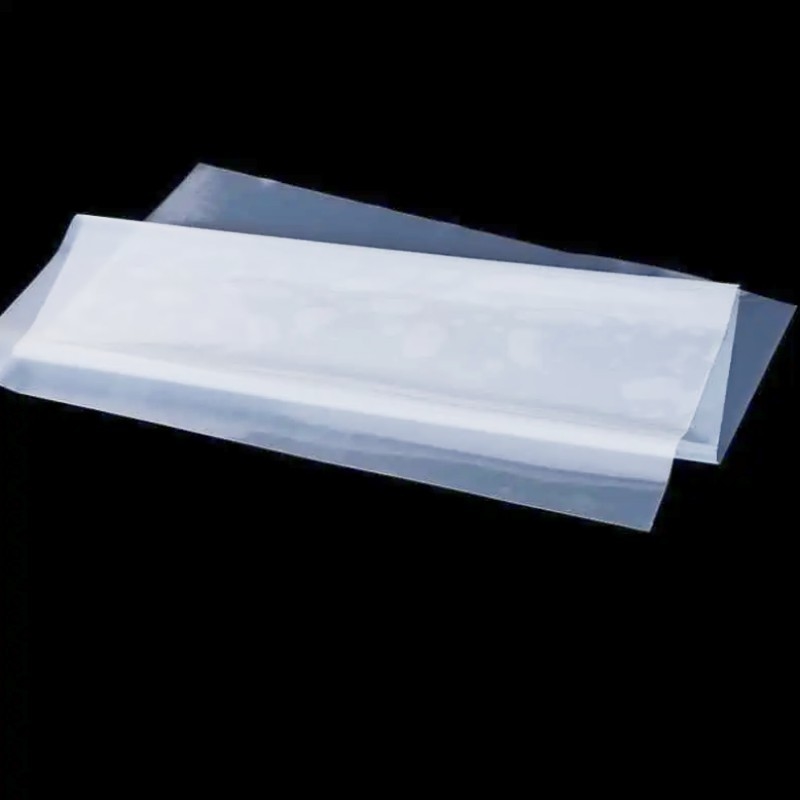

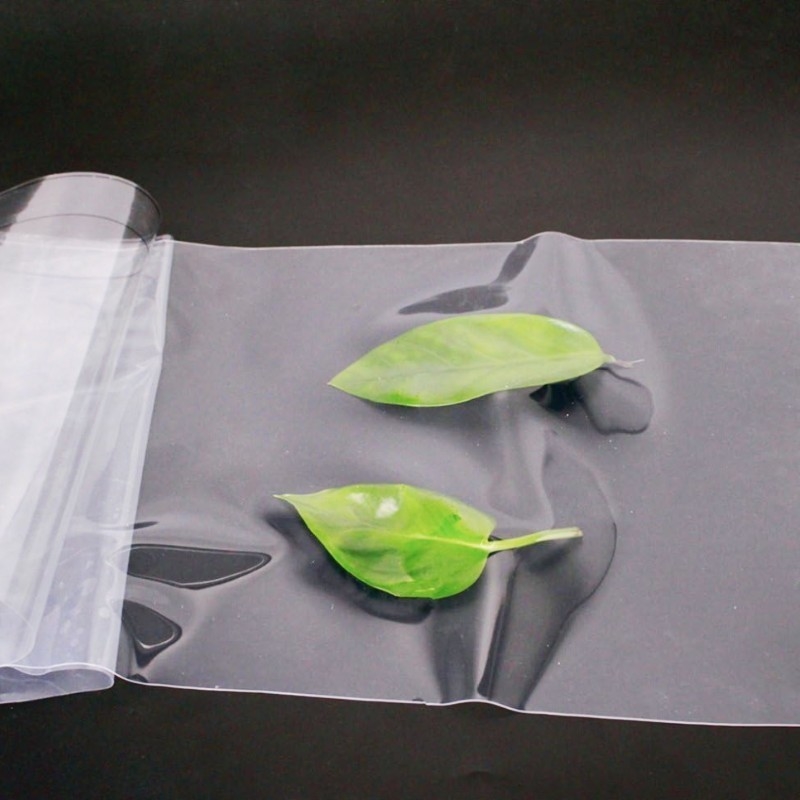

High Transparent Silicone Rubber
FEATURES
Highly transparent silicone rubber is a noteworthy silicone substance known for its remarkable optical clarity and superior transparency. It is a crystal-clear, ultra-pure material that finds its usage in diverse applications that necessitate perfect optical clarity. Owing to its exceptional resistance to sunlight, UV rays, aging, and weathering, it is an appropriate choice for outdoor applications. Additionally, it is hypoallergenic, making it safe for application in medical and healthcare products. This material is extensively used in industries such as electronics, automotive, medical, and aerospace, where transparency plays a vital role.
SPECIFICATION
| Model |
DH-9470
|
DH-9460 | |
| Appearance |
Translucent, no obvious extraneous matter |
||
| Density (g/cm3) |
1.22±0.04 |
1.18±0.04 |
|
| Hardness (Shore A Points) |
70±2
|
60±2 |
|
| Tensile Strength (MPa≥) |
9.0
|
9.0 |
|
| Elongation at Breakage (%≥) |
300
|
400 |
|
| Tension Set (% ≤) |
8 |
8 | |
| Tear Strength (kN/m ≥) | 40 | 40 | |
|
Volume Resistivity (Ω.cm) |
1.0X1016 |
||
|
Dielectric Strength (kv/mm≧) |
22 |
||
| Linear Shrinkage Rate after the first vulcanization |
2.9-3.4% |
2.8%-3.4% | |
Physical and Mechanical Properties are based on the first vulcanization data,Electrical Properties are drawn from the second vulcanization data.
The first vulcanization condition for test piece: 175℃×5min；The second vulcanization condition for test piece: 200℃×2h
Vulcanizator: Liquid DMDBH, quantity added 0.65%
APPLICATION
1. Optics: High transparency silicone rubber is also used in optics applications such as lenses and optical fibers, where its exceptional clarity and transparency allow for the transmission of light with minimal loss.
2. Marine: Due to its high resistance to weathering and UV rays, high transparency silicone rubber is a popular choice for marine applications such as seals, gaskets, and hoses.
3. Automotive: High transparency silicone rubber is used in automotive applications such as gaskets, seals, and hoses, where its high temperature resistance and durability are important.
4. Sports equipment: High transparency silicone rubber is used in sports equipment such as swim goggles and diving masks, where its clarity allows for clear and unobstructed vision underwater. It is also used in mouthguards and other protective gear due to its hypoallergenic properties.
FAQ
1. Can you provide custom formulations?
Yes, we can provide custom formulations based on your specific requirements. Our team of experts will work closely with you to develop a material that meets your exact specifications.
2. What is the maximum temperature resistance of your high transparent silicone rubber?
Our high transparent silicone rubber has the ability to withstand temperatures ranging from -60°C to 250°C.
3. Is your high transparent silicone rubber FDA approved?
Yes, our high transparent silicone rubber is FDA approved, making it safe for use in food and beverage applications.
4. Can your high transparent silicone rubber be colored?
Yes, our high transparent silicone rubber can be colored according to your requirements. Please inform our sales team about your specific color needs.
5. What is the minimum order quantity for your products?
The minimum order quantity for our high transparent silicone rubber products is 100KG. However, we can make exceptions for smaller quantities based on your specific needs.
