Place of Origin:
China
Brand Name:
CHENGUANG FSP
Certification:
FDA / LFGB / SGS
Model Number:
CG-9330
Contact Us

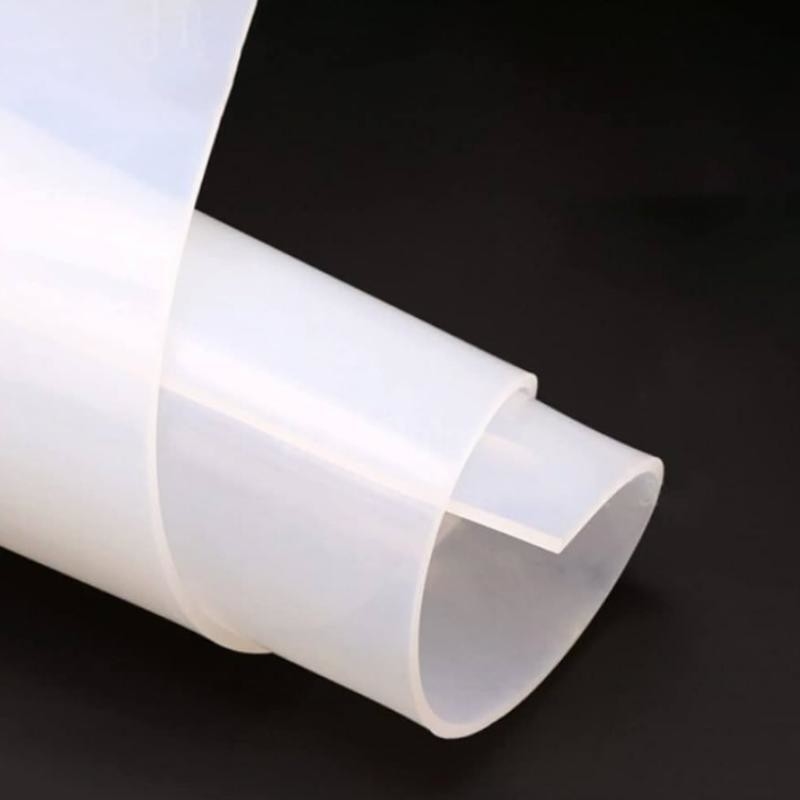

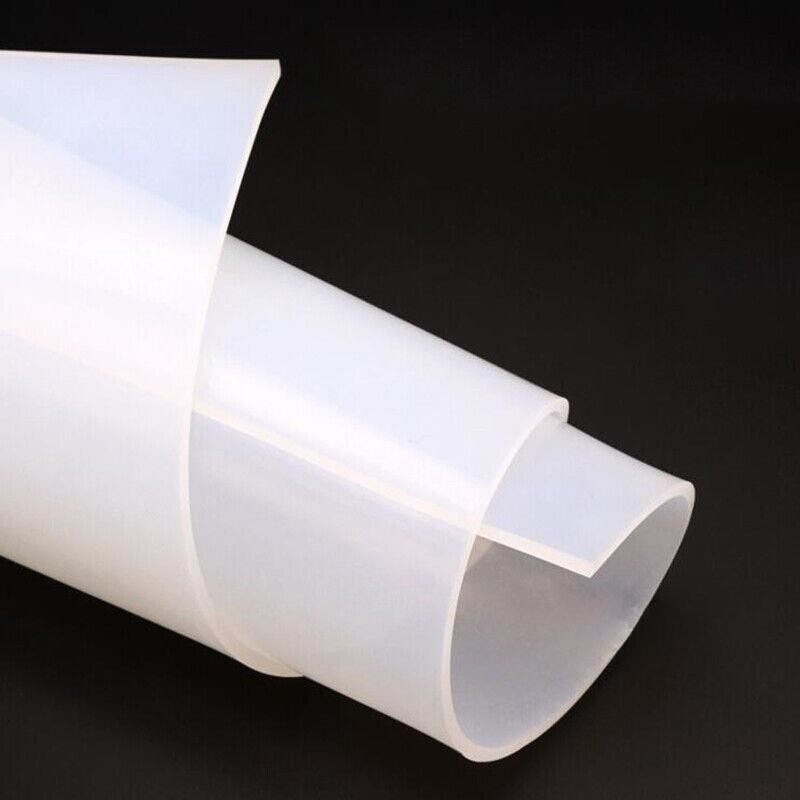

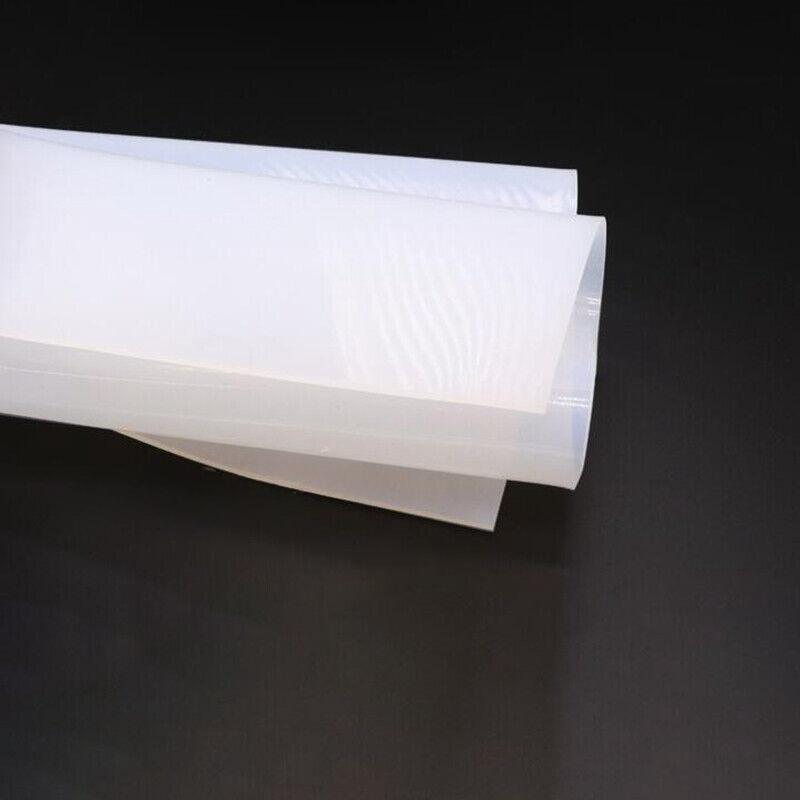

Elastomer Silicone Rubber High Transparent Raw Materials
Description
High transparency silicone rubber is a type of silicone material that is formulated to be exceptionally clear and see-through. It maintains the inherent properties of silicone rubber, such as flexibility, heat resistance, and chemical stability, while offering minimal opacity. This makes it ideal for applications where visual inspection is necessary, or for aesthetic purposes where a clear appearance is desired. It is often used in medical devices, food-grade products, LED encapsulation, and other applications where purity and clarity are essential.
SPECIFICATION
| Model |
CG-9330
|
CG-9340 | |
| Appearance |
Translucent, no obvious extraneous matter |
||
| Density (g/cm3) |
1.07±0.04 |
1.13±0.04 |
|
| Hardness (Shore A Points) |
32±2
|
40±2 |
|
| Tensile Strength (MPa≥) |
8.0
|
9.0 |
|
| Elongation at Breakage (%≥) |
700
|
600 |
|
| Tension Set (% ≤) |
8 |
8 | |
| Tear Strength (kN/m ≥) | 20 | 35 | |
|
Volume Resistivity (Ω.cm) |
1.0X1016 |
||
|
Dielectric Strength (kv/mm≧) |
22 |
||
| Linear Shrinkage Rate after the first vulcanization |
3.2-3.7% |
3.0%-3.6% | |
Physical and Mechanical Properties are based on the first vulcanization data,Electrical Properties are drawn from the second vulcanization data.
The first vulcanization condition for test piece: 175℃×5min；The second vulcanization condition for test piece: 200℃×2h
Vulcanizator: Liquid DMDBH, quantity added 0.65%
APPLICATION
1. Optical Clarity: High transparency silicone rubber offers excellent optical clarity, allowing for the clear transmission of light with minimal distortion.
2. UV and Temperature Resistance: It is highly resistant to ultraviolet light and extreme temperatures, maintaining its properties and transparency over a wide range of conditions.
3. Chemical Stability: This material is chemically inert, meaning it does not react with most chemicals and solvents, which contributes to its durability and suitability for sensitive applications.
4. Flexibility and Durability: Despite its transparency, high transparency silicone rubber retains the flexible and elastic properties of conventional silicone rubber, making it both durable and adaptable to various shapes and uses.
PRODUCT FLOW
Advisory Service —— Incoming Inspection —— Quote Negociation —— Order Payment —— Confirm the Receipt of Goods —— Arrangements for Delivery —— Sampling Inspection —— Arrange Production
